PM Extended Lift 102
PM Extended Lift 102

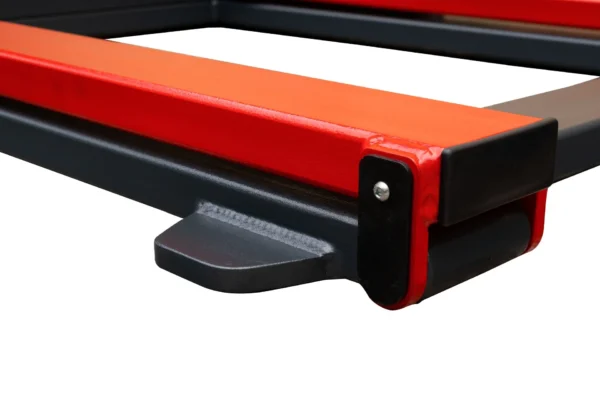

The mobile lifting platform PM Extended Lift 102 is a narrow model, designed for oldtimers, especially the English ones (TRV, Austin Healey, Triumph etc.) which have a small track width. The parallelogram construction is very stable despite it’s low weight. It’s easy to move. The lift has 4 arms that can be rotated by 180 degrees. The 2 rear arms can also be moved in the longitudinal direction. This model has additional stabilizing tabs. With our tire stands, complete
restoration projects can be realized in your own garage.
| CARRYING CAPACITY: | 2800 KG / 3500KG |
| LIFT HIGH MAX: | 1000 MM |
| LIFT HIGH MIN: | 105 MM |
| POWER SUPPLY: | PNEUMATIC PUMP OR ELECTRIC PUMP 220V/12V |
| TOTAL WEIGHT: | 270 KG |
| DIMENSIONS: | LENGHT: 2600 MM WIDTH: 1020 MM |
| ARMS LENGHT: | 480 MM |
| ARMS REACH: | 2290 MM AT WIDTH 940 MM 1340 MM AT WIDTH 1900 MM |
